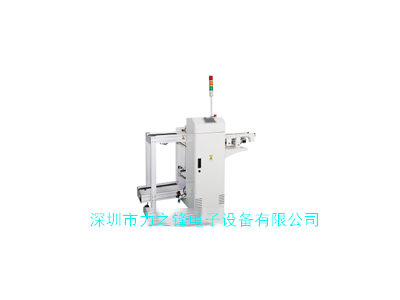

Shenzhen Lizhifeng Electronic Equipment Co., Ltd

2) Special aluminum profile guide rail and special Qianniao plastic chain

3) 90W production brake motor is driven by ball screw to lift Magazine step by step

4) Pneumatic clamp structure

5) One set of 0.8m long pusher is attached

6) The specification of Magazine is L460 * W400 * 565mm

7) The maximum specification of PCB is L450 * W330

8) Direction: left to right/right to left

9) The lifting platform pitch is selected as 10, 20, 30, 40

10) Xinjie PLC programmable controller control

11) With automatic board retraction function

12) The operation control panel is a display control true color touch screen

13) Power supply: 220V 50HZ;

14) Air source: 0.4-0.6MPa

15) Number of fully loaded storage plates: 50PCS

16) One set of electric cabinet
