 X-ray detector 5000BTS

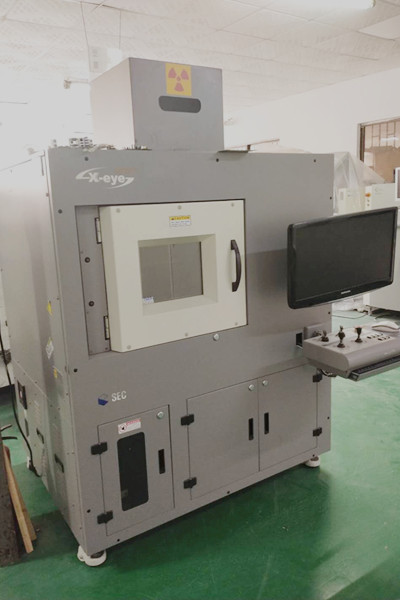

X-eye 5000BTS micro focus X-RAY detection equipment
Product category: X-Ray
Brand: SUNEAST/RIDO

Model: 5000BTS

Equipment location: Dongguan


Series:
X-eye 5000BTS is a high-performance X-ray testing equipment specially designed for conventional nondestructive testing and defect analysis. It is equipped with a 90kV micro focus closed tube, and the focal spot size is up to 5 μ m. High quality and clear images can be provided.

The X-eye 5000BTS model equipment equipped with a variety of control axis systems can control samples to detect at any magnification and at any tilt angle.

The preset inspection condition function of equipment loading enables the inspection system to be upgraded to semi-automatic equipment.

Friendly operation interface, equipped with a variety of measurement and remark tools, easy to use.

X-eye 5000B (for semiconductor and SMT)
Optimized high-performance X-ray detection equipment for SMT (Focus: 5A, tube voltage: 90kv)

High resolution image processing up to 1 million pixels

Realize the applicable PCB size maximization (460mm X 340mm)

4-axis control (X, Y, Z, Rotation, Tilt) function

Table AFT (automatic position correction) function (Option)

High speed and efficient detection function (Auto Teaching)

Industry high safety guarantee (surface leakage less than 1 μ sv/h）

apply

PCB processing BGA, CSP, Flip Chip

Lithium battery camera module

LCD module automobile accessories (steering wheel, brake system)

Al, Mg, Zn die-casting plastic products, electrical appliances and electronic accessories

Parameters:
Analytical size: 5 μ m

Sample table: 350 * 400mm (standard type) 570 * 670mm (oversized)

Tilt angle: ma * 60 degrees

Large voltage: 90KV (10W)

Detector: FPD (digital flat panel detector)

Detection magnification: 6~160 times

Voltage: 220/240

Weight: 950KG

Scope of application

1. SMT field detection: BGA solder ball cavity, open circuit, ball leakage, bridging

2. Semiconductor industry: testing lead wire bonding, epoxy resin cavity

3. Electronic components: connectors, camera modules

4. Test battery

5. Detection of aluminum die castings and plastic components

The company also has peripheral equipment: SMT machine, printing machine, NGOK plate receiver, buffer machine, upper and lower plate machines, docking station, plate splitter, plate turnover machine, translation machine and other complete sets of equipment are sold and leased from stock.
