AOI optical detector TR7700 SII
Update time:2020-09-27    Views:1374

AOI optical detector TR7700 SII


Brand: DELU

Product: AOI optical detector

Model: TR7700 SII

Origin: Taiwan

Equipment location: Dongguan

Price: Negotiable (rent and sell, price concessions)




characteristic:

Equipped with 4MP large size color camera μ The detection speed can reach 120 cm2/sec under m resolution. The TR7700 SII online automatic optical detector uses the dynamic image detection technology to provide a more lightweight, fast and economical furnace front/rear detection solution. The TR7700 SII is equipped with * * * and highly flexible RGB W color light source system. The unique ultra-low angle light source design can provide a better detection scheme for polarity and black components, and can provide a more accurate and stable detection capability for lead-free and micro components 01005 of traditional assembly circuit boards.

characteristic:

Fast online color automatic optical detection on the market

Measurable micro components of large size color camera 01005

Small floor area to improve the use efficiency of workshop space

Specifications:

Camera type 4 MP color camera

Optical resolution 10 μ M or 15 μ m

Image taking mode High speed dynamic image taking

Detection speed 60 cm2/sec @ 10 μ m  120 cm2/sec @ 15  μ m

Test items

Body defects, missing parts, erection, side erection, polarity reversal, offset, wrong parts, reversed parts, damaged parts, etc

Solder joint defects: more tin, less tin, bridging, DIP component tin eating, IC foot warping, gold finger surface scratch and tin sticking defects

Integrated yield management system before/after furnace



Circuit board size

Circuit board measurable size 50 x 50 – 510 x 460 mm

Measurable thickness of circuit board 0.6 – 5 mm

Circuit board weight 5kg

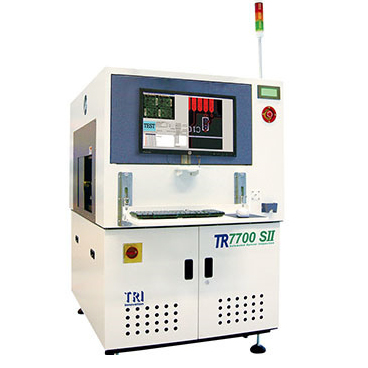

Delphi TR7700 SII online automatic optical inspection machine (AOI)
