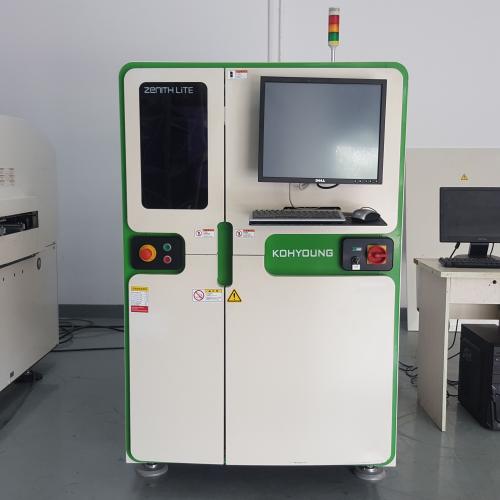

Supply of second-hand KOH YOUNG Zenith Lite 3D SPI solder paste thickness AOI online detector

Product introduction:

Product name: Advanced 3D Detector

Model: Zenith Lite

Voltage: 220Va.c1 phase 50/60HZ

Rated current: 5 Amp

Maximum current: 10Amp

Short circuit current rating: 10KA/220Va. c

Pneumatic power: 0.5-0.8Mpa

Power: 2.2kw

Weight: 600KG

Size: 1000 * 1265 * 1627 (mm)

IP grade: IP 2X

parameter

Detection speed: 30 square centimeters per second 0.53 seconds per FOV

Machine dimensions

PCB size 0.4-5 mm-0.5-8 mm

PCB size 510 x 490 mm-810 x 610 mm

PCB weight 6 KG-10 KG

characteristic:

Wide measuring range With patented 4-channel projection technology and multi frequency height measurement, the Lite version has a wide measurement range while maintaining high resolution

Deformation correction KSMAR is used to correct the distortion of FPCB in real time; Before teaching bare boards, check the recognition mode information without PCB CAD data

Fast and easy programming Gaoyong's innovative programming tool provides a new concept of easy programming, which can be realized by using 3D measured values
